Return SureGuide® (SG & RSG)

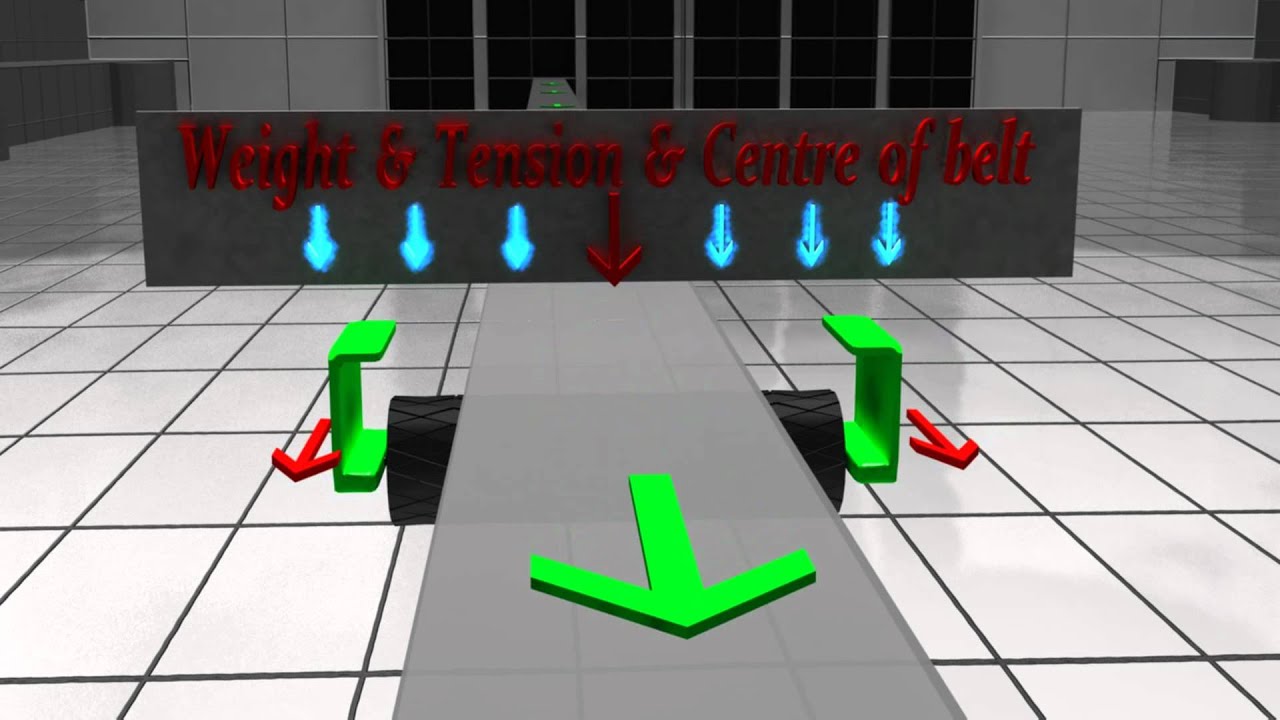

The Return SureGuide® is a quality belt-centralising return tracker that uses precision-turned C.N.C. components. Specially hardened steels, high quality bearings and high quality components ensure that the SureGuide® performs optimally over an extended period. The SureGuide® is a robust, sealed unit designed to withstand the harshest environments.By using the weight and tension of the belt, the SureGuide® responds immediately to belt misalignment, gently guiding the conveyor belt back to centre. It can be manufactured to suit belt widths from 450mm—2800mm and is one of the only units on the market that can be fully refurbished. Available in single-direction and reversible.

A 2 YEAR CONDITIONAL WARRANTY IS OFFERED ON ALL NEW AND REFURBISHED RETURN SUREGUIDE® UNITS

Shaft Diameter
Roller Diameter (Lagged)
Belt Width
Shaft Capacity Range
30mm
168mm
450mm - 1350mm
150kg - 550kg
40mm
210mm
900mm - 1800mm
220kg - 750kg
50mm
235mm
1050mm - 2600mm
300kg - 820kg
70mm
235mm
1800mm - 2800mm
400kg - 900kg

Pressure Control Brackets

The SureGuide® Pressure Control brackets are an optional extra with each return SureGuide ordered.
  • Prevents overloading of the shaft.
  • Ensures accurate pressure between the SureGuide® and the conveyor belt.
  • Are individually graded to suit the specific SureGuide® size and series.
  • Allows for easy pressure adjustment.​
